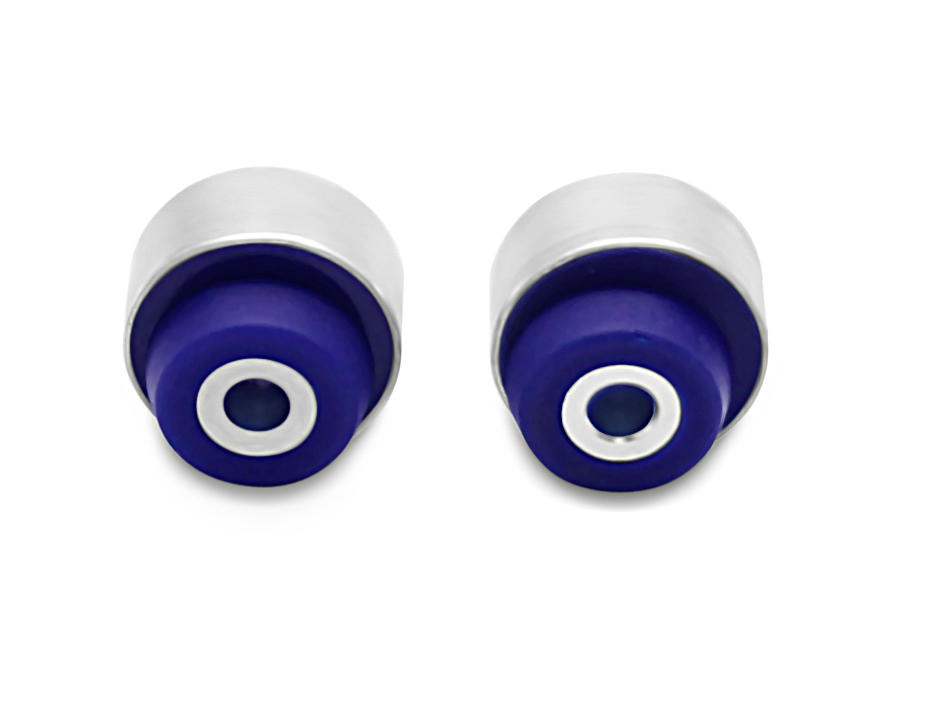

Front Control Arm Lower-Inner Front Bush Kit
SPF2418K 1 $108.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Inner Front Bush Kit

  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Fitting Position: Front
  • Fitting Time [min.]: 180
  • Part of kit: (x)
  • Front
  • SPF2418K
  • 1
  • 4B,2T
  • $108.00
  • More Info
  • BUY NOW

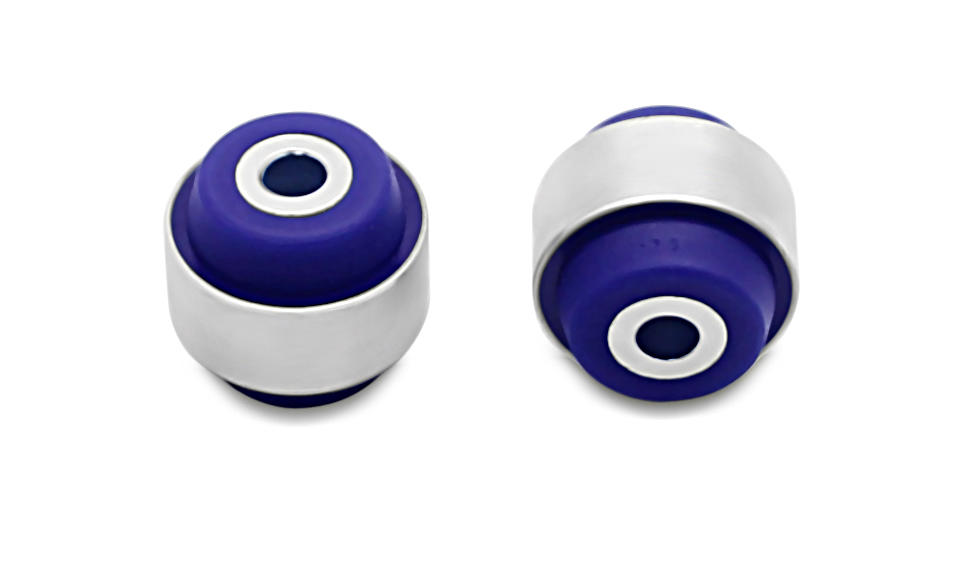

Front Control Arm Lower-Inner Rear Bush Kit
Standard replacement SPF3111K 1 $127.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Inner Rear Bush Kit

Standard replacement

2 x Standard bushings per kit

Vehicle Application Information:

  • 60mm OD bush check size
  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Fitting Position: Front
  • Fitting Time [min.]: 210
  • Part of kit: (x)
  • Front
  • SPF3111K
  • 1
  • 6B,2T,2S
  • $127.00
  • More Info
  • BUY NOW

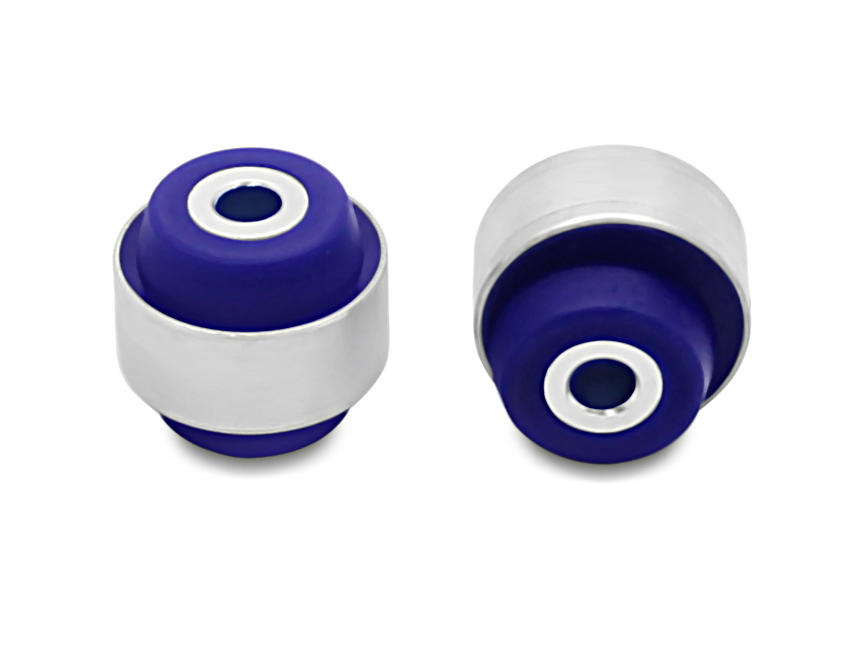

Front Control Arm Lower-Inner Rear Bush Kit - Double Offset
Alignment Correction SPF3113K 1 $141.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Inner Rear Bush Kit - Double Offset

Alignment Correction

Vehicle Application Information:

  • 1 Degree Caster Adjustment available

2 x offset bushings for caster adjustment

A Double Offset kit is used for enhanced handling performance and will deliver positive caster to both sides of the vehicle.
The vehicle will have improved directional stability, crisper, more responsive steering and improved 'return to centre' feel.
This is a non tyre wearing geometry change that has a substantial effect on a vehicles handling characteristics.

Follow the installation instructions and enjoy the results!

Vehicle Application Information:

  • 60mm OD bush check size
  • Performance Handling Kit
  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Fitting Position: Front
  • Fitting Time [min.]: 210
  • Part of kit: (x)
  • Front
  • SPF3113K
  • 1
  • 6B,2T,2S
  • $141.00
  • More Info
  • BUY NOW
Front Control Arm Lower-Inner Rear Bush Kit - Single Offset
Alignment Correction SPF3112K 1 $141.00

Control Arm-/Trailing Arm Bush

Control Arm Lower-Inner Rear Bush Kit - Single Offset

Alignment Correction

Vehicle Application Information:

  • 0.5 Degree Caster Adjustment available

Use this kit to rectify a steering pull after a vehicle has been aligned to the manufacturer's specifications.
Supplied with an offset bush to be fitted to the passenger side and a standard bush for the driver's side, these kits stagger the caster or setback by repositioning the ball joint slightly forward in the chassis.
This is a non tyre wearing geometry change that has a substantial effect on a vehicles ability to track straight and other handling characteristics.
Follow the installation instructions and the problem is solved.

Vehicle Application Information:

  • Steering Pull Correction Kit
  • 60mm OD bush check size
  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Fitting Position: Front
  • Fitting Time [min.]: 210
  • Part of kit: (x)
  • Front
  • SPF3112K
  • 1
  • 2S,2T,6B
  • $141.00
  • More Info
  • BUY NOW

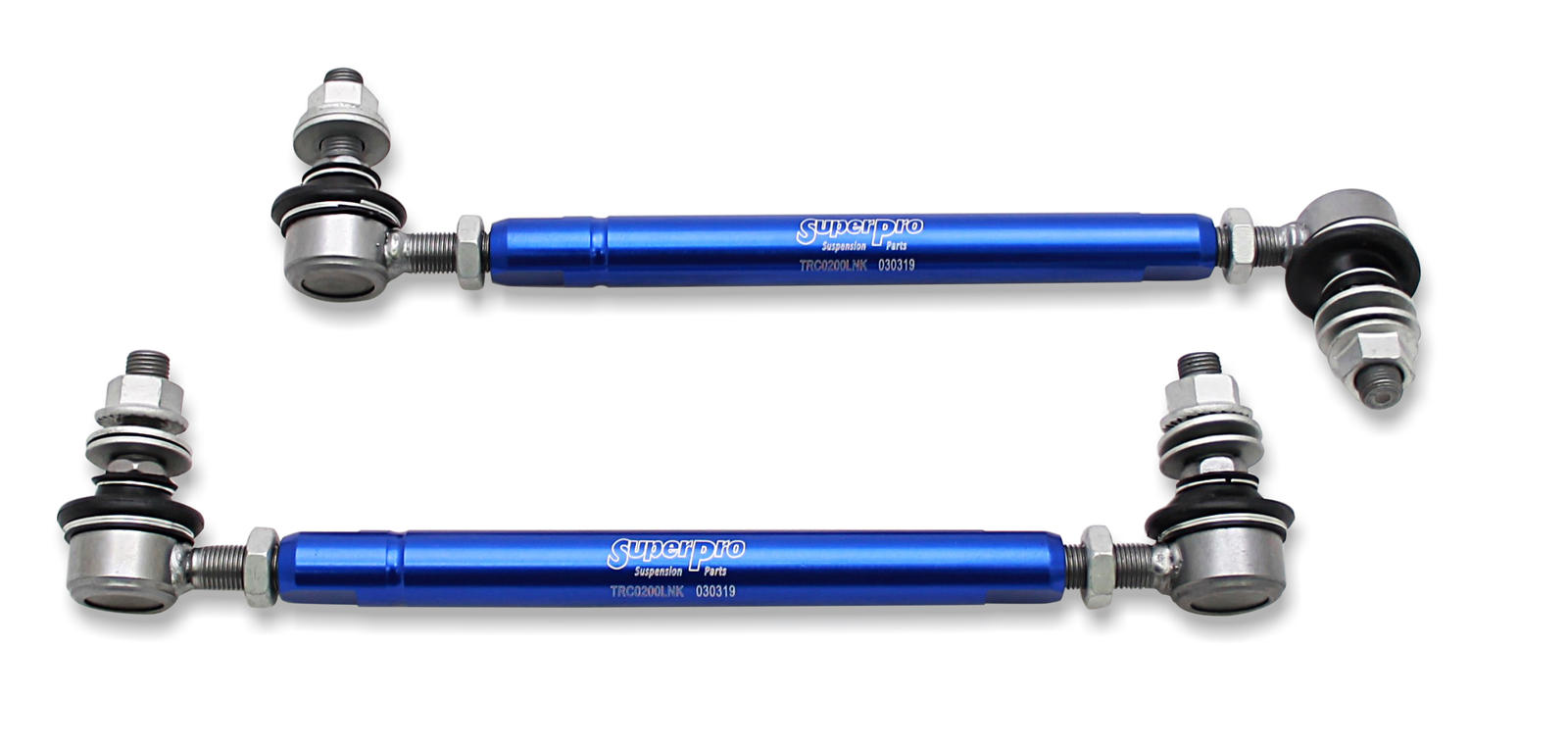

Front Sway Bar Link Kit - Heavy Duty Adjustable
TRC10200 1 $184.00

Sway Bar Stabiliser Kit

Sway Bar Link Kit - Heavy Duty Adjustable

10mm Ball Joint Adjustable Link

Minimum Length 254 mm - Maximum Length 305 mm

Designed to maximise the benefit of Roll Control Adjustable Sway Bars and be used in place of that hard to find O.E link.

Features & Benefits

  • 6060-T5 Alloy Link
  • Ball for low friction and long life
  • Spanner provision for on-car adjustment
  • Eliminates sway bar link flex
  • Allows for neutral sway bar positioning
  • Maximises all positions on adjustable Sway Bars
  • Suits lowered or raised vehicles

SuperPro Tip - To get the best out of these adjustable link kits, please read the fitting instructions prior to installation.

  • Fitting Difficulty: moderate
  • Fitting Position: Front
  • Fitting Time [min.]: 60
  • Part of kit: (x)
  • Front
  • TRC10200
  • 1
  • 2 Links
  • $184.00
  • More Info
  • BUY NOW

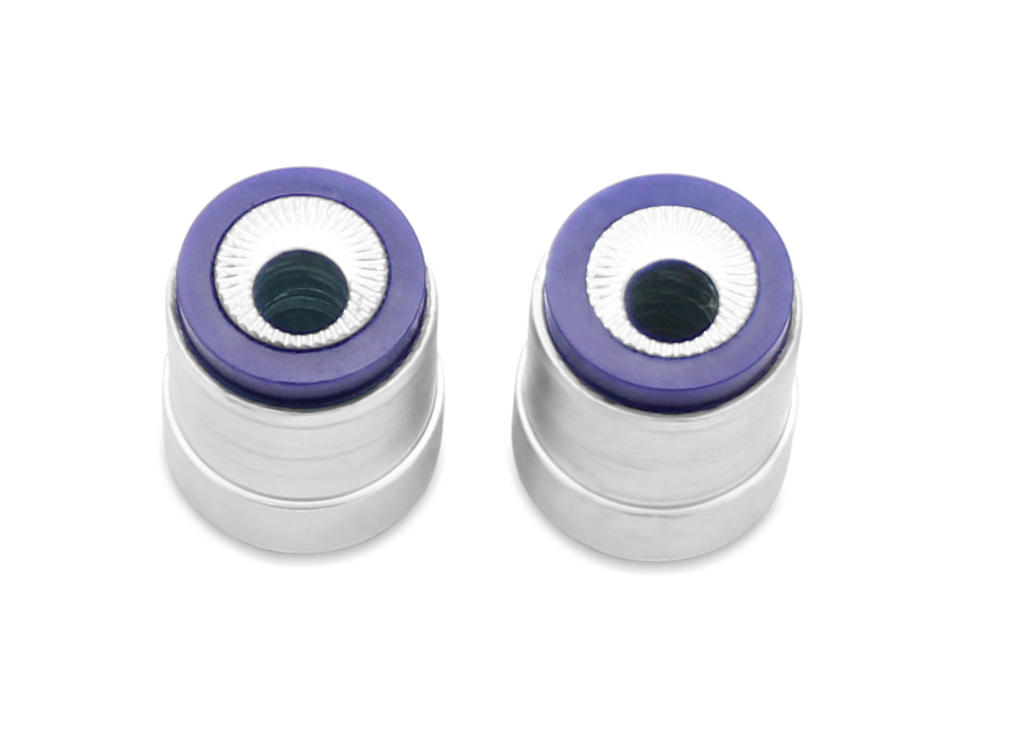

Rear Control Arm Upper-Inner Bush Kit
SPF3359K 1 $89.00

Control Arm-/Trailing Arm Bush

Control Arm Upper-Inner Bush Kit

  • Fitting Difficulty: moderate
  • Fitting Position: Rear
  • Fitting Time [min.]: 60
  • Part of kit: (x)
  • Rear
  • SPF3359K
  • 1
  • 2B,2T
  • $89.00
  • More Info
  • BUY NOW
Rear Control Arm Upper-Inner Bush Kit - Offset
SPF3360K 1 $93.00

Control Arm-/Trailing Arm Bush

Control Arm Upper-Inner Bush Kit - Offset

  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Fitting Position: Rear
  • Fitting Time [min.]: 60
  • Part of kit: (x)
  • Rear
  • SPF3360K
  • 1
  • 2B,2T
  • $93.00
  • More Info
  • BUY NOW

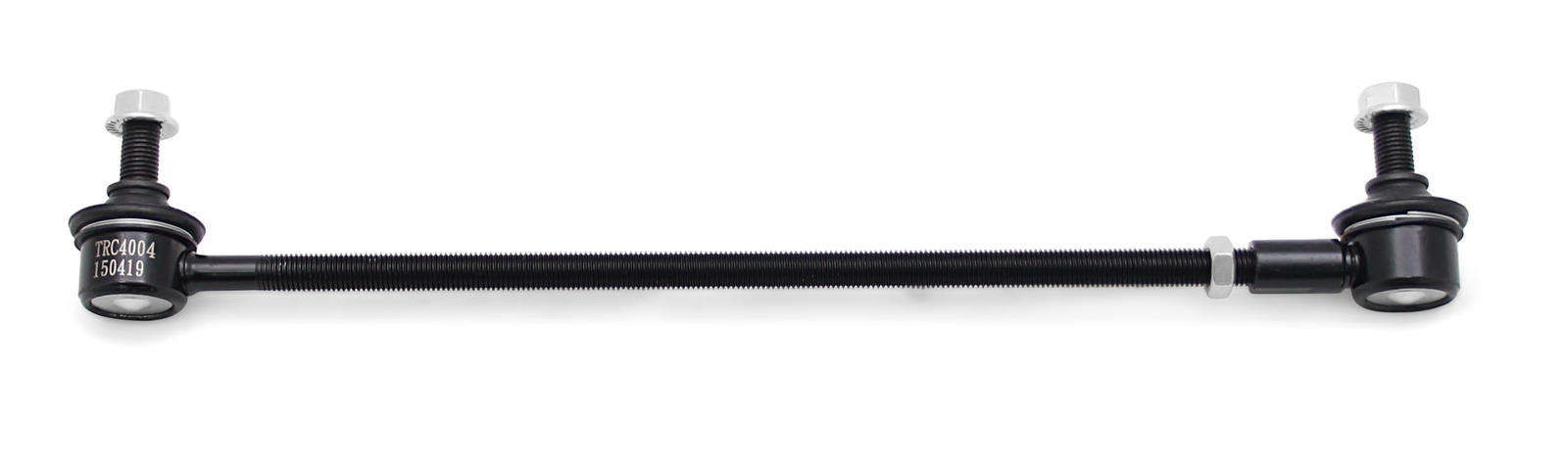

Rear Sway Bar Link
Cut To Length Link TRC4004 2 $35.90

Sway Bar Stabiliser Kit

Sway Bar Link

Cut To Length Link

10mm Ball Joint Link

Minimum Length 80mm - Maximum Length 320mm

  • Fitting Difficulty: easy
  • Fitting Position: Rear
  • Fitting Time [min.]: 30
  • Part of kit: (x)
  • Rear
  • TRC4004
  • 2
  • 1 Link
  • $35.90
  • More Info
  • BUY NOW

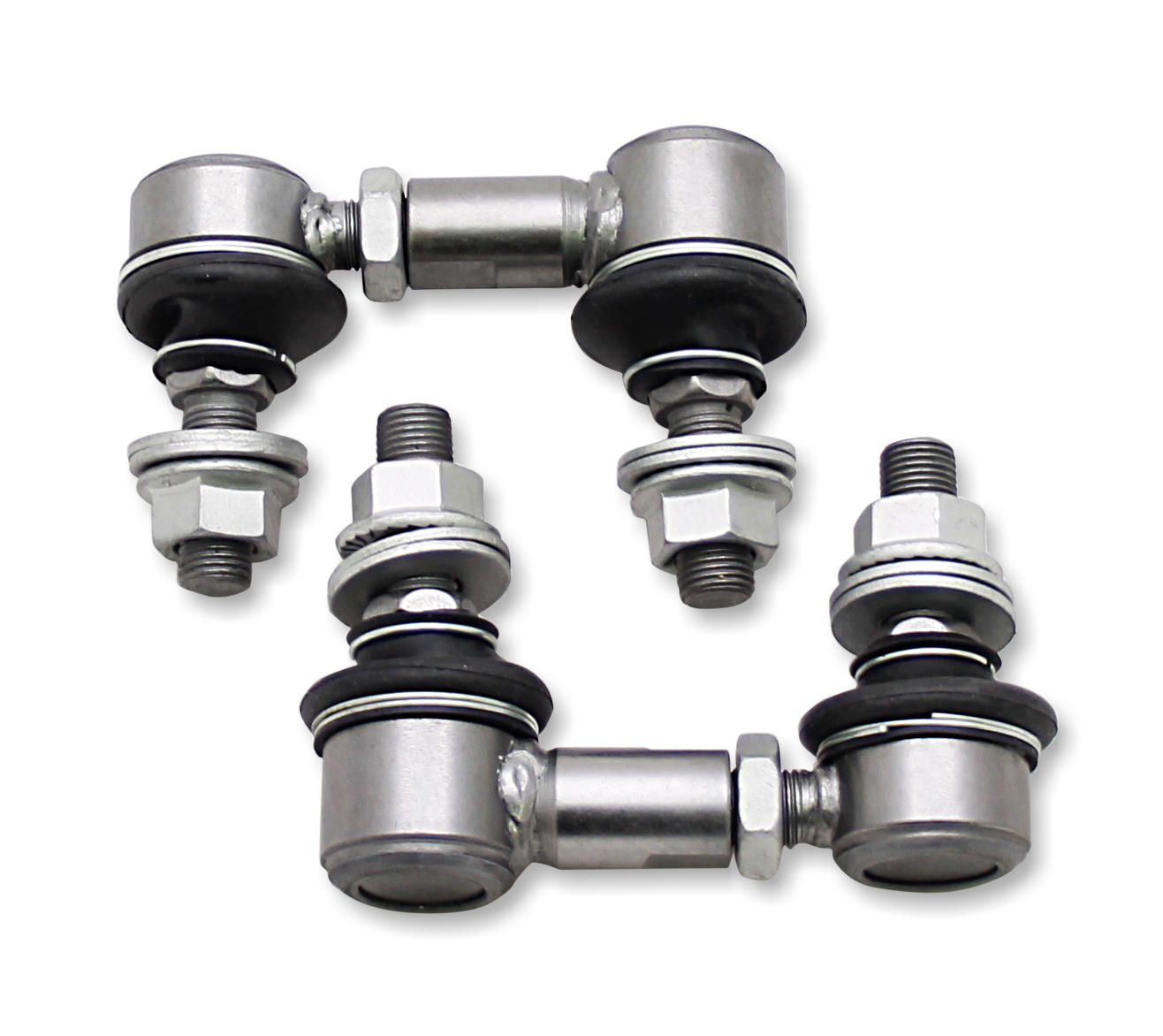

Rear Sway Bar Link Kit - Heavy Duty Adjustable
TRC1025 1 $130.00

Sway Bar Stabiliser Kit

Sway Bar Link Kit - Heavy Duty Adjustable

10mm Ball Joint Adjustable Link

Minimum Length 75 mm - Maximum Length 85 mm

Designed to maximise the benefit of Roll Control Adjustable Sway Bars and be used in place of that hard to find O.E link.

Features & Benefits

  • 6060-T5 Alloy Link
  • Ball for low friction and long life
  • Spanner provision for on-car adjustment
  • Eliminates sway bar link flex
  • Allows for neutral sway bar positioning
  • Maximises all positions on adjustable Sway Bars
  • Suits lowered or raised vehicles

SuperPro Tip - To get the best out of these adjustable link kits, please read the fitting instructions prior to installation.

  • Fitting Difficulty: moderate
  • Fitting Position: Rear
  • Fitting Time [min.]: 60
  • Part of kit: (x)
  • Rear
  • TRC1025
  • 1
  • 2 Links
  • $130.00
  • More Info
  • BUY NOW
Rear Trailing Arm Front Bush Kit
SPF3358K 1 $

Control Arm-/Trailing Arm Bush

Trailing Arm Front Bush Kit

  • Axle alignment required after fitting
  • Fitting Difficulty: difficult
  • Fitting Position: Rear
  • Fitting Time [min.]: 120
  • Part of kit: (x)
  • Rear
  • SPF3358K
  • 1
  • 2B,2CP
  • More Info
  • BUY NOW
